Maximize Your Network Efficiency with Silicom’s STS2 TimeSync Server Adapter

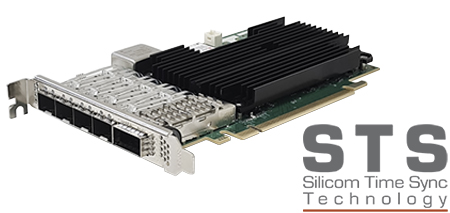

Silicom’s TimeSync (STS2) P410G8TS81 is a 1/10 Gigabit Ethernet PCI Express Gen4 TimeSync server adapter, designed for X86 Servers and high-end appliances.
The 1/10 Gigabit Ethernet TimeSync PCIe server adapter is based on Intel E810 chipset and best in the industry timing solution targeting 5G Class C wireless base station and carrier-grade systems.
Silicom’s STS2 Support 8 port of 1G/10G capabilities to synchronize host system with external clock source using 1PPS and 10MHz. The STS2 TimeSync server adapter support both 1588v2/PTP and SyncE for high clock accuracy in Master and Slave mode. STS2 design is meeting O-RAN requirements for LLS-C1, LLS-C2 and LLS-C3, modes of operations with both Boundary and Transparent clocks.
Silicom TimeSync STS Line Card: High Timing Accuracy at Low Cost for 5G DRAN and CRAN Edge Deployments
Silicom TimeSync STS line card for 4G and 5G NIC enable real-time data transmission with high timing accuracy at the lowest cost to power 5G DRAN and CRAN edge deployments:
Support 1588/PTP over IPv4 / IPV6, IEEE1588v2
Support SyncE /ITU-T G.8262
T-BC/T-TSC Boundary Clock and TSC Slave Clock /G.8273.2
T-GM Grand Master /G.8273.1 per G.8275.1 PTP Profile
PRTC Primary Reference Time Clock Class B/G.8272
T-TC Transparent Clock /G.8273.3
1588 Software Stack and Servo Software in x86
